Temperature difference Type, 3-Way DN20(PN16) Connection Electric Drive Linear HVAC Valve Actuator
1. The temperature communication actuator is an intelligent control actuator driven by a brushless motor. It is mainly used to control the temperature difference between the supply and return water of the fan coil. PID control function is adopted to ensure real-time performance, speed, and regulation stability.
2. Even if the communication is interrupted, the automatic control can still be maintained to ensure the control system's safety.
3. The return water temperature does not reach the set temperature, the actuator, according to the temperature difference, stepless adjustment of the actuator opening finally ensures a constant return water temperature difference.
4. Return water temperature set to 2-45℃ (can be changed through Modbus protocol).
5. The actuator with high precision and multi-function and field bus function is adopted. The parameters of the actuator can be set by fieldbus, and the functions of the actuator can be controlled by fieldbus or analog input.
Technical Specifications
| Actuator model number | ZEB24WM |
| Type | Modbus |
| Power supply | 24V AC/DC, 230VAC |
| Power consumption | 3W for running, 0.5W for maintain |
| Frequency | 50/60Hz |
| Return water temperature setting | 38 degrees (adjustable according to the protocol) |
| Pushing force | 100Nm (max. 150N) |
| Stroke | 4mm, 5mm, 6mm |
| Protection level | IP54 |
| Sensor size | ø4.5x40mm, black PVC, 1M |
| Cable | 2x0.75mm² white PVC 0.5M |
Wiring Diagram

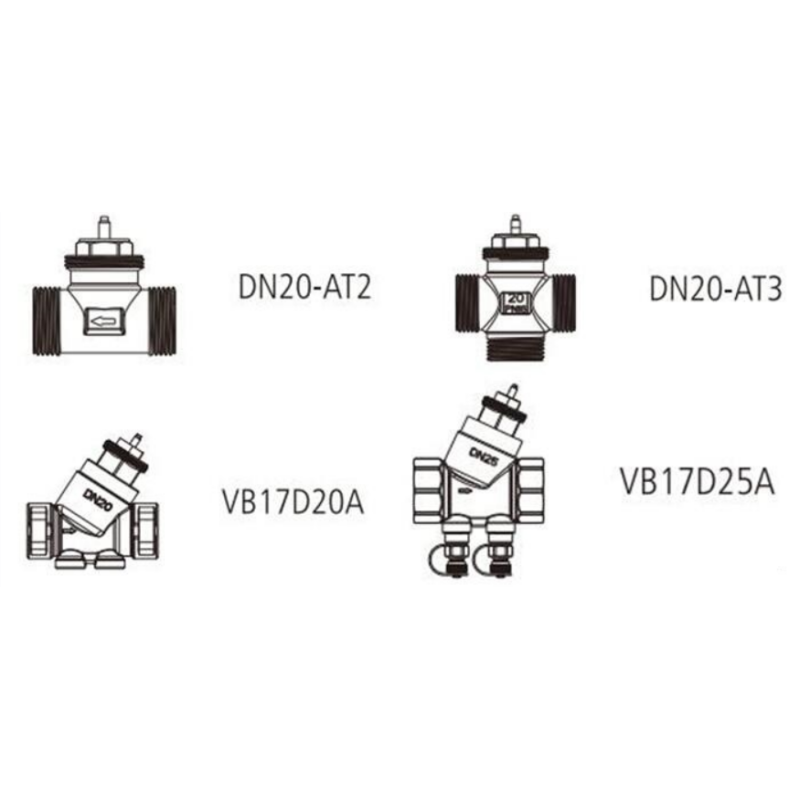

Below are the type of valves to be used for actuators.
| Valve type | Thread | Kvs | Stroke/mm | Valve body pressure MPa | Closing differential pressure MPa | Medium temperature |
| VB10I20A | Rp 3/4" | 5.2 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| VB12I20A | Rp 3/4" | 4.5 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| DN20-AT2 | G 3/4" | 3.2 | 4 | 1.6 | 0.4 | 0°C to 100°C |
| DN20-AT3 | G 3/4" | 2.2 | 3 | 1.6 | 0.1 | 0°C to 100°C |
| VB17D20A | Rp 3/4" | 3.2 | 3 | 1.6 | 0.4 | 0°C to 100°C |
| VB17D25A | Rp 1" | 3.8 | 3 | 1.6 | 0.4 | 0°C to 100°C |
